TC553/852 Development Board for Kyocera Display (Optrex)
F-51553 & F-51852 128x64 LCD

TC553/852 128x64 LCD Controller Description

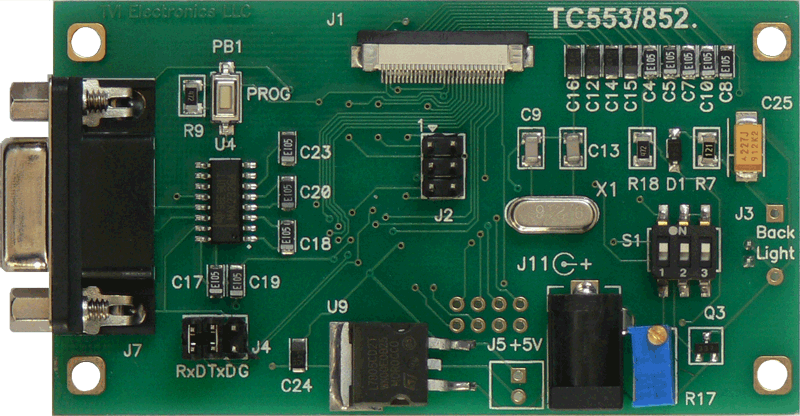

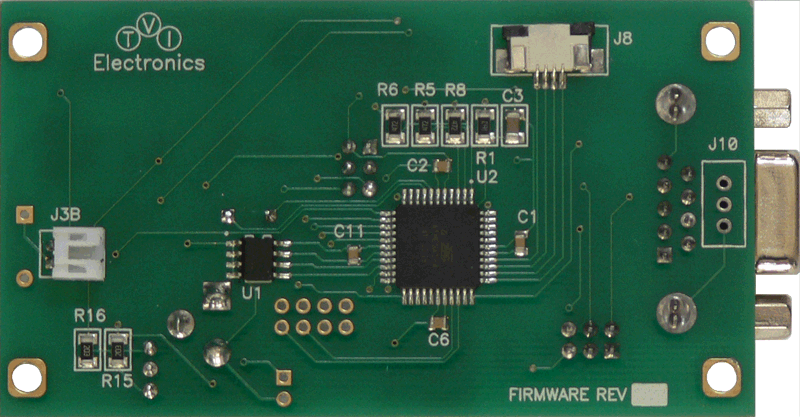

The TC553/852 is an intelligent 128x64 LCD controller with integrated touch screen control that provides the Graphical User Interface (GUI) for connecting Kyocera Display (former Optrex) F-51553 and F-51852 Series 128x64 COG Monochrome STN Graphic LCD displays with the target development board. This controller allows user to individually control each display pixel. This independent pixel control allows displaying both text and pictures simultaneously. The TC553/852 uses an ATMEGA16 microcontroller and external AT24C512 serial EEPROM. The controller can be used as a development board and reprogrammed via AVRISP device or OEM. This board requires a single 5 VDC supply to be plugged into J5 connector (bypass voltage regulator) or 7-15 VDC power supply to be plugged into J11 connector.

Key Features

• Supports Kyocera Display F-51553 128x64 LCD displays

• Supports Kyocera Display F-51852 Series 128x64 LCD displays

• RS-232 communication interface PC and TTL (8051 Family, AVR, ARM, Basic Stamp, PIC, STM)

• Nine programmable baud rates

• 512k bites external EEPROM

• Touch screen controller

• AVRISP Interface

• Draw/Clear Line/Rectangle/Circle

• 7-15 VDC voltage regulator

• Software controls contrast (F-51553 only), backlight ON/OFF, display ON/OFF

• Hardware contrast adjustment

• Power up user defined settings (saved in the memory)

• 8 port pins of ATmega16 microcontroller (PA6, PA7, PC2, PC3, PD4, PD5, PD6, PD7) are available for your personal use

• Horizontal Scrolling Bar (25 characters max.)

• 3 integrated fonts (custom fonts are available) can be mixed freely on the screen: 5x7, 8x14, 8x14 Bold

Font Size

Key Benefits

• Can be used as a development board or OEM

• The firmware can be customized for particular application

• The hardware can be modified for specific OEM requirements

• VIs and programming examples for LabVIEW are available

TC553/852 128x64 LCD Controller Supporting Documentation

Evaluation Tools

	Control Panel 128x64 V3.3.1 (7/19/13 - 2.20M)
	Details... Significantly reduces the time and effort to evaluate LCD controller boards. Allows to display information on Kyocera Display (Optrex) and Newhaven Display 128x64 Monochrome Graphic displays. Load and Save bitmap screens. 3 integrated fonts: 5x7, 8x14, 8x14 Bold. Supports Windows 95/98/ME, NT4/2000/XP/Vista/7. Provided on an as-is basis.

Technical Documentation

	User Manual (1/16/11 - 1.19M)
	Dimensions (12/15/10 - 104K)

Firmware Release Information

	Version	Release Notes	Release Date
	v3.0 (39.2k)		January 12, 2011

User Guides

	Control Panel 128x64 User Guide (July 2013 - 690K)	Details... This guide describes how to use the CP128x64 software.
	3 Steps Descriptive Guide Book (August 2011 - 380K)	Details... The Guide Book is now included on the supporting CD-ROM.
	Handling Precautions (January 2013 - 53.9K)
	Warranty (January 2013 - 83.5K)

Note: VIs and programming examples for LabVIEW are available on the supporting CD-ROM.
